利用迁移学习进行图标识别

发表于 分类于

迁移学习是将一个预训练的模型通过截断和重构后，用在别的任务中。

Javascript代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
import * as tf from '@tensorflow/tfjs';
import * as tfvis from '@tensorflow/tfjs-vis';
import { getInputs } from "./data";
import { img2x, file2img } from './utils';

//加载模型
const MOBILENET_MODEL_PATH = 'http://127.0.0.1:8080/mobilenet/web_model/model.json';
const NUM_CLASSES = 2;
const BRAND_CLASSES = ['WeChat','QQ']

window.onload = async () => {
    const {inputs, labels} = await getInputs();
    //console.log(inputs,labels);

    const surface = tfvis.visor().surface({name: '输入示例',styles:{height:250}});
    inputs.forEach(imgE1 => {
        surface.drawArea.appendChild(imgE1);
    });

    //截断模型
    const mobilenet = await tf.loadLayersModel(MOBILENET_MODEL_PATH);
    mobilenet.summary();
    const layer = mobilenet.getLayer('conv_pw_13_relu');
    const truncatedMobilenet = tf.model({
        inputs: mobilenet.inputs,
        outputs: layer.output
    });

    //添加双层神经网络
    const model = tf.sequential();
    model.add(tf.layers.flatten({
        inputShape: layer.outputShape.slice(1)
    }));
    model.add(tf.layers.dense({
        units: 15,
        activation: 'relu'
    }));
    model.add(tf.layers.dense({
        units: NUM_CLASSES,
        activation: 'softmax'
    }));

    //设置损失函数和优化器
    model.compile({loss: 'categoricalCrossentropy', optimizer: tf.train.adam()});

    //使用截断模型预处理训练数据集
    const { xs, ys } = tf.tidy(() => {
        const xs = tf.concat(inputs.map(imgEl => truncatedMobilenet.predict(img2x(imgEl))));
        const ys = tf.tensor(labels);
        return { xs, ys };
    });

    //使用双层神经网络进行模型训练
    await model.fit(xs, ys, {
        epochs: 200,
        callbacks: tfvis.show.fitCallbacks(
            { name: '训练效果' },
            ['loss'],
            { callbacks: ['onEpochEnd'] }
        )
    });

    //进行预测
    window.predict = async (file) => {
        const img = await file2img(file);
        document.body.appendChild(img);
        const pred = tf.tidy(() => {
            const x = img2x(img);
            const input = truncatedMobilenet.predict(x);
            return model.predict(input);
        });

        const index = pred.argMax(1).dataSync()[0];
        setTimeout(() => {
            alert(`预测结果：${BRAND_CLASSES[index]}`);
        }, 0);
    };

};

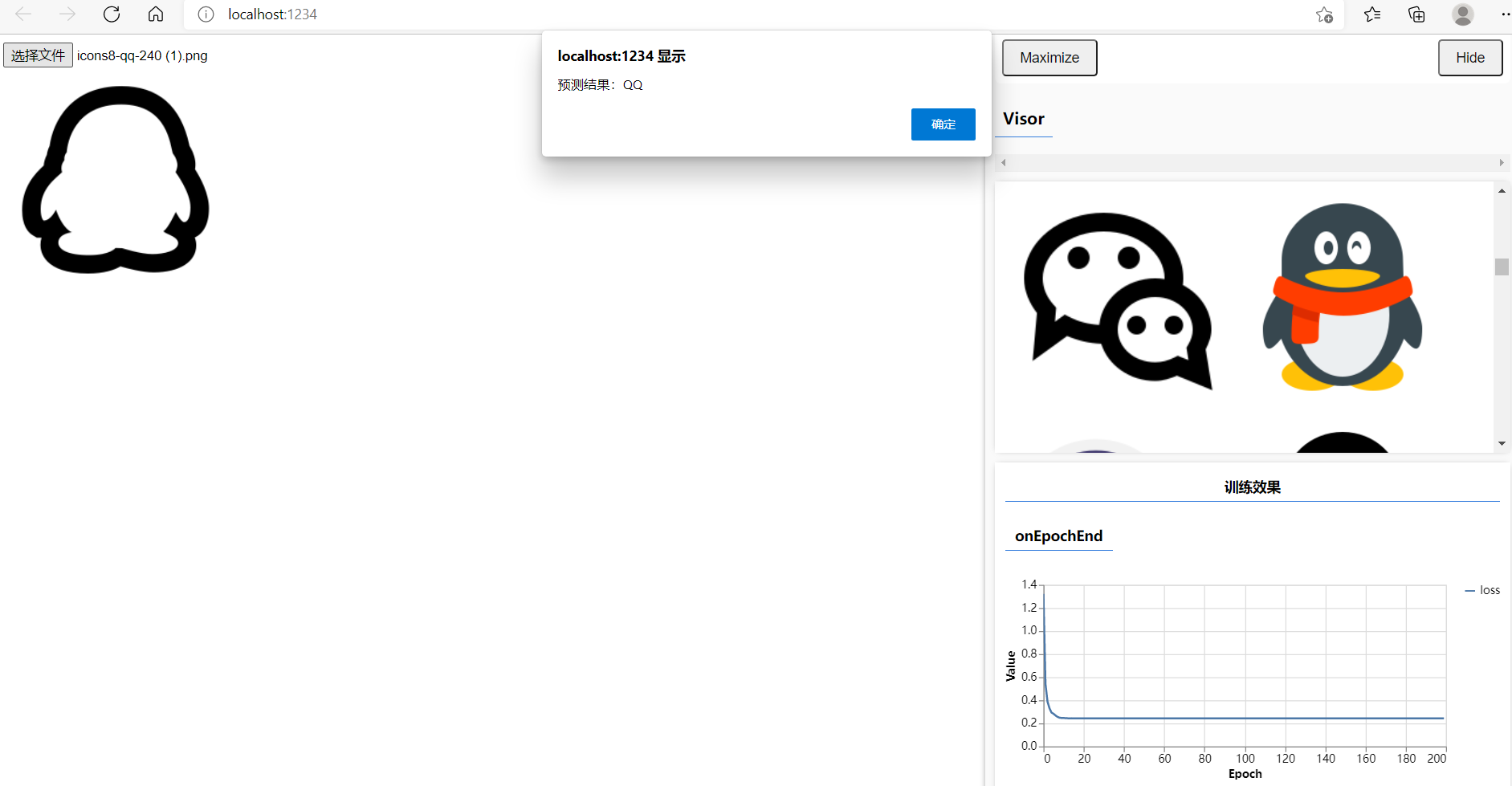

效果图：
